High Precision Cylinder

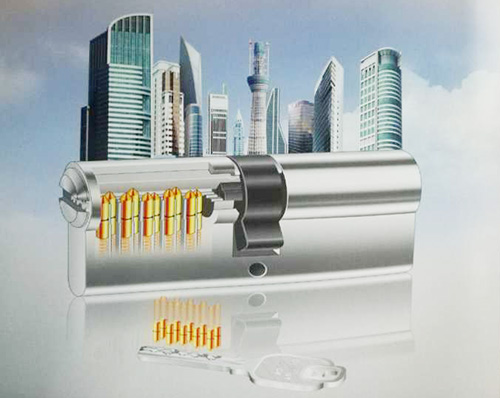

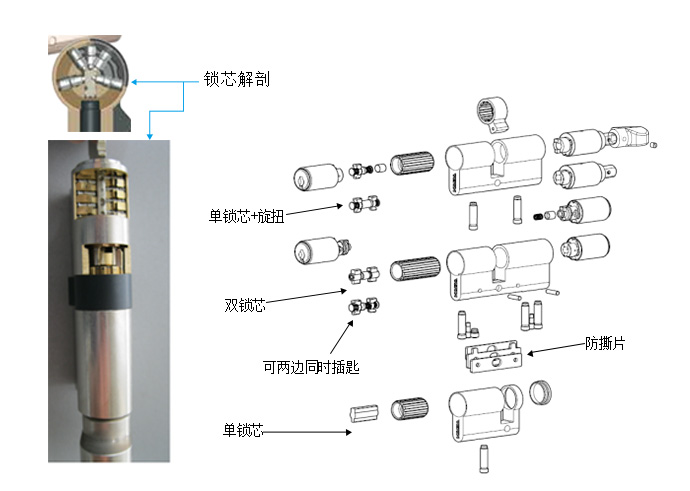

Structure and continuation of high precision Cylinder



Feature of high precision Cylinder total system


Master key system of high precision Cylinder


Overview of high precision Cylinder

●The patent of invention of this product is admissible and being accepted by the State Intellectual Property Office.
●The key teeth has four sides with the included angle,total five rows of 38-holes,which sustain the secrecy and inductivity.(Super C-grade with anti technology-opening)
●The special key way design is anti technology-opening.
●The cylinder will not work and be blocked when the cam be turned 15 degree by technology-opening but not by the true key.
●There are two stochastic hardened springs which could change the random force.
●The top of key has bulit-in locking technology dead pin secure function.

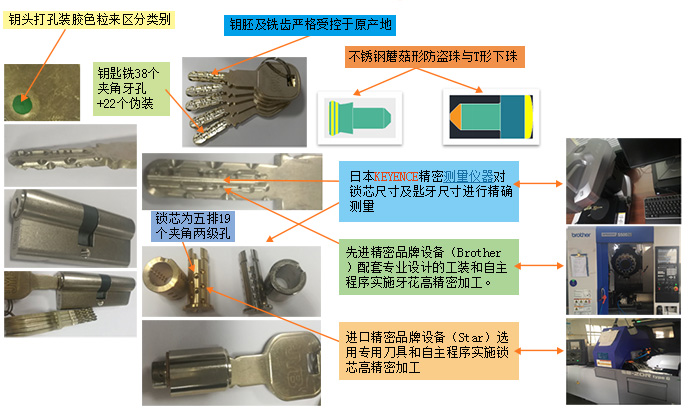

●The cylinder is made by high precision machining,fit with 38 stainless steel marbles.(T-shaped pins and Mushroom-shaped anti-theft pins)

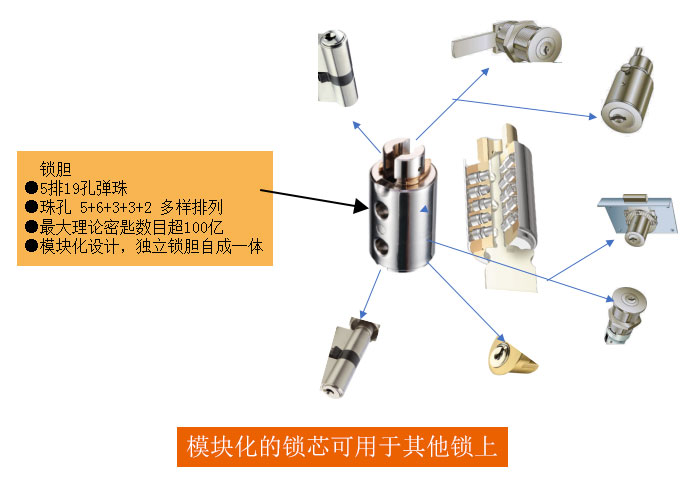

●The plug with modular design can be expanded to different kinds of cylinders.
●The cupronickel key is strictly protected,which is machined by professional equipments and programs,preventing the unauthorized bitting.

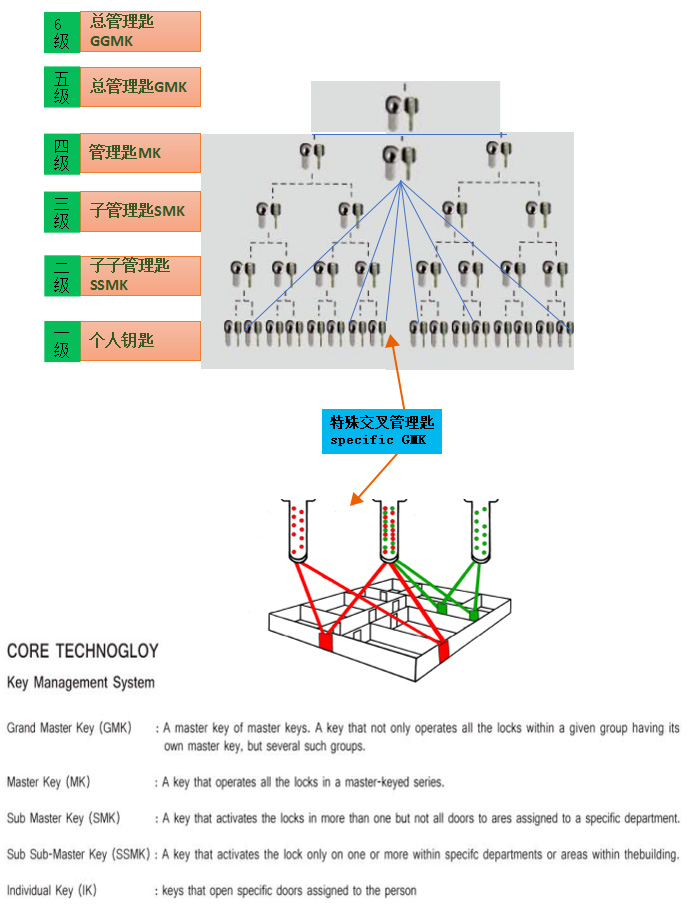

●The Master Key System can provide 6 level management and achieve special cross management.
